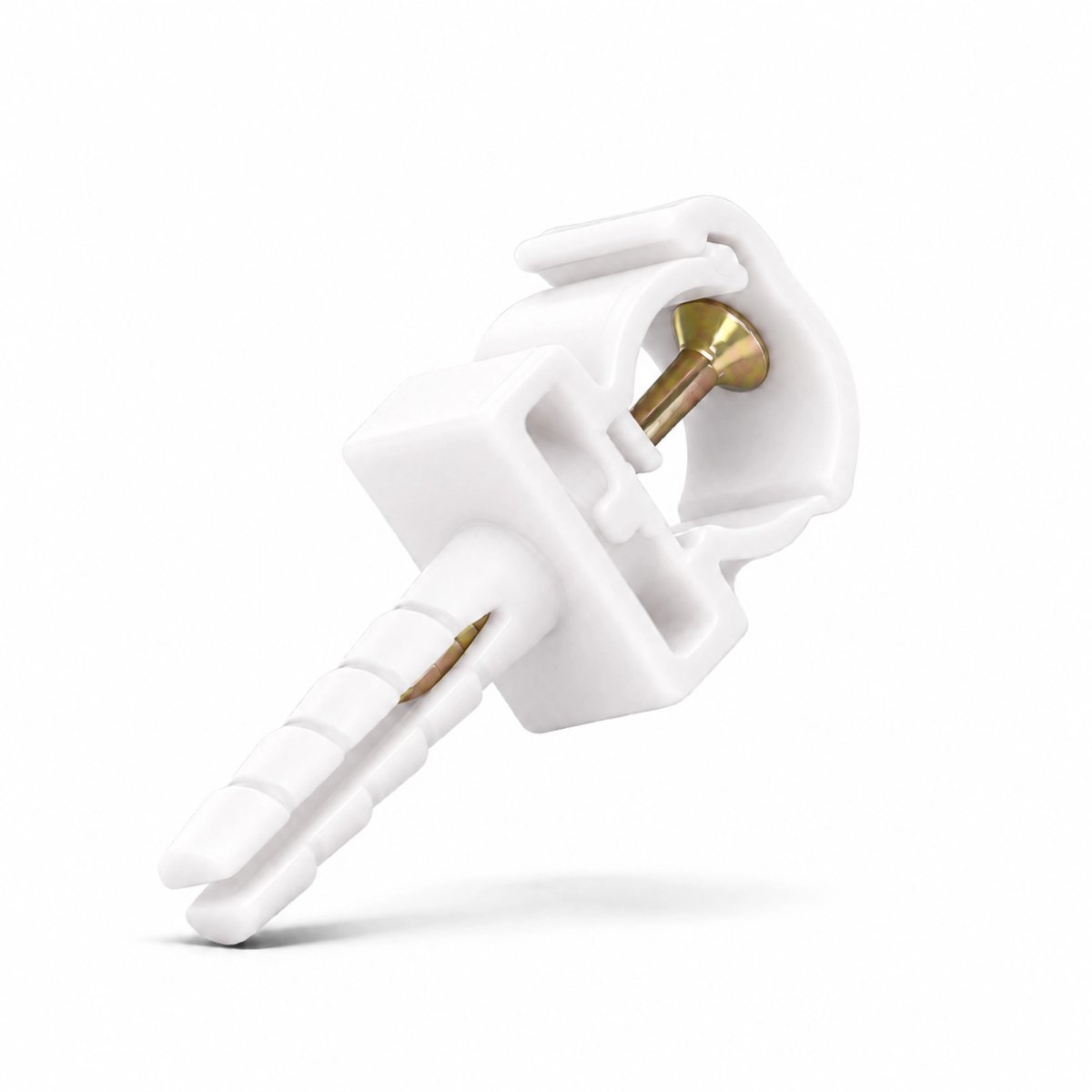

EasyBat White 20/22mm

GB20/22-W

A 20/22mm EasyBat pipe clip in white, moulded from a tough high-performance composite in one solid piece, with no loose parts to crack or go missing. Drill, tap the leg home, seat the pipe and snap the cap shut. EasyBats hold their shape under pressure, dampen vibration and water hammer, and stay secure in tight or uneven spaces.

Proudly made in SA
Designed and manufactured locally
25-year
Guarantee

Specification

Pipe size: 20/22mm (metric and imperial)
Colour: White
Material: High-performance composite, one-piece moulded
Drill hole: 8mm, 35mm deep
Recommended spacing: 500mm horizontal · 600mm vertical · 500mm on exposed or surface-mounted pipe
Load: High load capacity — supports full pressure rating
Noise: Dampens vibration and water hammer
Assembly: None — hinge and snap-on cap

Installing EasyBats

1
Drill an 8mm hole 35mm deep for 15/16mm and 20/22mm sizes, or a 10mm hole for 25/28mm and 50/54mm.
2
Insert the leg and tap the back of the screw with a screwdriver and hammer until it locks.
3
Seat the pipe and snap the cap closed. The open cap holds the pipe while you align it.
4
Space clips at 500mm on horizontal runs and 600mm on vertical runs; 500mm on exposed or surface-mounted pipe.
